Sale!

IPC-HDW-1320SP

Original price was: ৳ 5,500.00.Current price is: ৳ 5,000.00.

Resolution : 3 MP / 1536P ( 2028 x 1536) |Key Features : 1 /3’’ 3 MP CMOS|Lens : 3.6 mm |IR Distance : 30 Meter

Category: Tag:

Description

Dahua IP Camera IPC-HDW-1320SP Features

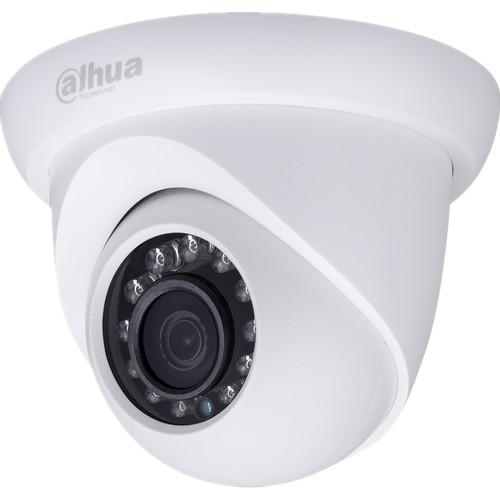

Dahua IP Camera IPC-HDW-1320SP 3MP IR Eyeball Network Camera

> 1/3” 3Megapixel progressive CMOS
> H.264+ & H.264 dual-stream encoding
> 20fps@3M(2048×1536) &25/30fps@2M(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE

Dahua IP Camera IPC-HDW-1320SP Specifications

Camera
Image Sensor 1/3” 3Megapixel progresive CMOS
Effective Pixels 2304(H) x1536(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:98°/77°,V:51°/40.5°
Focus Control Fixed
Close Focus Distance N/A
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression H.264+/H.264
Streaming Capability 2 Streams
Resolution 3M(2048×1536)(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:24K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage),Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone iPhone, iPad, Android Phone
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <6.4W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal+Plastic
Dimensions Φ108mm×84.9mm(4.25×3.15)
Net Weight 0.23Kg(0.51lb)
Gross Weight 0.387Kg(0.85lb)

Dahua IP Camera Demo Video



Download Dahua IP Camera IPC-HDW-1320SP Datasheet
