Sale!

IPC-HFW4431B-AS

৳ 17,200.00 ৳ 16,100.00

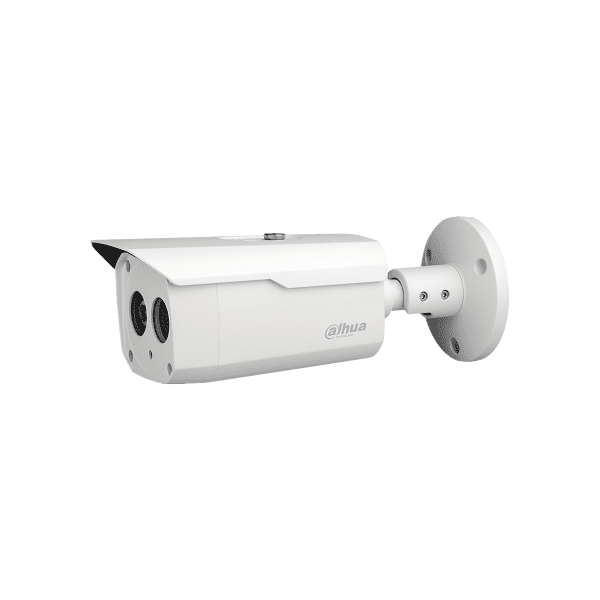

4MP HD WDR Network LXIR Bullet Camera

Category:

Description

IPC-HFW4431B-AS Features

1/3” 4Megapixel progressive scan CMOS
> Support H.264&H.265 dual codec
> 25/[email protected](2688×1520)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6mm fixed lens (6mm optional)
> 1/1 Alarm in/out, 1/1 audio in/out
> Max. IR LEDs Length 50m
> Micro SD memory, IP67, PoE

IPC-HFW4431B-AS System Overview

Eco-savvy products by upgrading H.265 encoding technology, bringing high efficient video compression. It saves bandwidth and storage , energy-saving design to enhance the monitoring system . Meanwhile, the series offers features such as starlight , Smart IR technology , intelligent image analysis techniques. It provides excellent image quality and intelligent and efficient event reminders . This series provides IP67 weatherproof and IK10 vandal-proof protection feature. Give customers more value.



Functions

Wide Dynamic Range

Embeded with industry leading wide dynamic range (WDR) technology, vivid picutures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the camera has the ability to detect and analyze moving objects for improved video surveillance. The camera provides optional standard intelliegence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.

Environmental

With a temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications. For environment with rain, sleet, snow and fog, an integrated wiper provides users with clear visibility at all times.

Protection

Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.

IPC-HFW4431B-AS Smart H.265+

Deliver high quality video without straining the network, Smart H.265+ is the optimized implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing saving of up to 70% of bandwidth and storage when compared with standard H.265.



HEVC (H.265)

H.265 ITU-T VCEG is a new video coding standard. H.265 Following standard developed around the existing video coding standard H.264 , some retain the original technology , while some of the relevant technology to improve the new technology uses advanced technology to improve the relationship between the code stream , encoding quality
, and the delay between algorithm complexity , optimize settings specific contents include : Improve compression efficiency , improve the robustness and error recovery capabilities, real-time to reduce the delay, reduce channel acquisition time and a random access delay , reduce complexity , etc





IPC-HFW4431B-AS Camera Specification
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.08Lux/F2.0( Color,1/3s,30IRE)

0.3Lux/2.0( Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm (6mm optional)
Max. Aperture F2.0 (F2.0)
Angle of View H: 87° (55°), V: 48° (31°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
DORI Distance Lens Detect Observe Recognize Identify
3.6 mm 80m(262ft) 32m(105ft) 16m(52ft) 8m(26ft)
6.0 mm 117m(384ft) 47m(154ft) 23m(75ft) 12m(39ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~87˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution 4M(2688×1520)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/

VGA(640×480)/CIF(352×288/352×240)

Frame Rate Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24~10240Kbps

H.265: 14~6144Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm 1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <6.5W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal
Dimensions 241.8mm×90.4mm×90.3mm (9.52”×3.56”×3.56”)
Net Weight 0.61Kg (1.35lb)
Gross Weight 0.8kg (1.77lb)

IPC-HFW4431B-AS Download Datasheet
