Description

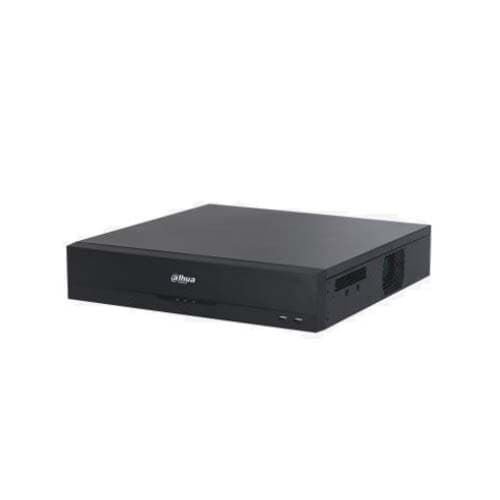

Dahua XVR5832S-I3 8HDD PENTA-BRID DVR (5MP) is compatible with HDCVI, HDTVI, AHD Analog, and IP cameras. It utilizes H.265+ video compression technology for efficient storage. XVR5832S-I3 also supports up to 4 HDDs, allowing for a maximum storage capacity of 40TB (8 x 10TB).
Dahua XVR5832S-I3 Specification
| Network | |
| Interoperability | ONVIF 21.12; CGI |
| Recording Playback | |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Recording Playback | 1/4/9/16 |
| DVR / NVR / XVR Specification | |
| Analog Camera Input | 32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps; 720p@25/30 fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps; 720p@25/30 fps. |
| Display | 1/4/8/9/16/25/36 |
| Dual-stream | Yes |
| Encoding Capacity | Main stream: 5M-N@(1fps–10fps); 4M-N,1080p@(1fps–15fps); 1080N, 720p, 960H, D1,CIF@(1fps–25/30fps) Sub stream: D1, CIF@(1fps–15fps) |
| IP Camera Input | Up to 32 channels of IPC access 32 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Video Detection and Alarm | Face Attributes : Gender; age group; glasses; expressions; face mask; beard Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels (up to 12 face images/s) Face Database Capacity : Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face image Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels General Alarm : Motion detection; video loss; tampering; local alarm Anomaly Alarm : No disk; storage error; disk full; camera offline; IP conflict; MAC conflict Intelligent Alarm : Face detection; face recognition; perimeter protection Alarm Linkage : Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
| System | Main Processor : Industrial-grade processor Operating System : Embedded Linux Operating Interface : Web; Local GUI |
| Video and Audio | Video Bit Rate : 32 kbps–6144 kbps Audio Sampling : 8 kHz, 16 bit Audio Bit Rate : 64 kbps Video Output : 2 HDMI, 1 VGA, 1 TV Resolution VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI2 is configurable. |
| Network | Multi-address mode,Fault Tolerance,Load Balance |
| Storage | Disk Group : Yes |
| Network Features | |
| Ports | TV Output : Yes Audio Input : 16-channel BNC (external) 32-channel BNC (coaxial audio) Audio Output : 1-channel BNC Two-way Talk : 1-channel BNC Alarm Input : 16 channels Alarm Output : 6 channels HDD Interface : 8 SATA ports,up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature eSATA : 1 RS-232 : 1 port, for PC Communication & Keyboard RS-485 : 1 port, for PTZ control USB : 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) HDMI : 2 VGA : 1 Network Port : 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Certification | CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
| Dimensions | Product Dimensions 2U, 439.9 mm × 463.0 mm × 94.9 mm (17.32″ × 18.23″ × 3.73″) (W × D × H) Packaging Dimensions 570.0 mm × 570.0 mm × 226.0 mm (22.44″ × 22.44″ × 8.90″) (W × D × H) |
| Environment | Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F) Operating Humidity : 10%–90% (RH) |
| Power | 100-240 VAC, 50/60 Hz |
| Power Consumption | <22 W |
| Weight | Net Weight : 6.9 kg (15.21 lb) Gross Weight : 9.5 kg (20.94 lb) |
| Warranty Information | |
| Warranty | 1 Year |
