Description

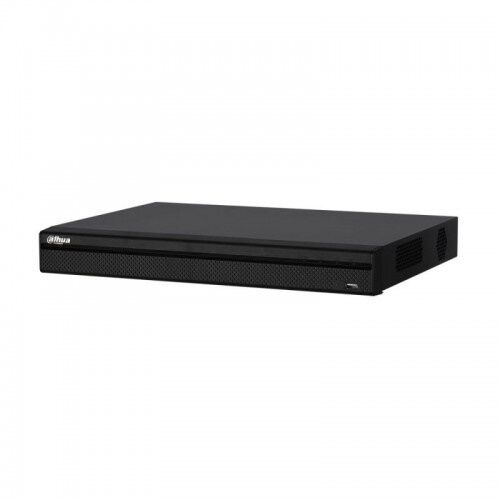

Dahua XVR4216AN-I PENTA – BRID DVR (1080N) (2MP) provides support for HDCVI, HDTVI, AHD Analog, and IP cameras. It also supports 2 HDDs, with a maximum capacity of 16TB or 32TB. Additionally, it features a full metal casing for durability.
Dahua XVR4216AN-I Specification
System | ||
Main Processor | Embedded Processor | |
Operating System | Embedded LINUX | |
Audio and Video | ||
IP Camera Input | 16 Channel, BNC | |
Two-Way Talk | Reuse audio in/out, RCA | |
Display | ||
Interface | 1 HDMI ,1 VGA | |
Resolution | 1920×1080, 1280×1024, 1280×720, 1024×768 | |
Multi-Screen Display | 16CH: 1/4/8/9/16/25 | |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
Recording | ||
Compression | H.265/H.264 | |
Resolution | 1080N, 720P, 960H, D1, CIF | |
Record Rate | Main Stream: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/CIF (1~25/30fps) Sub steram:CIF(1~7fps) |
|
Bit Rate | 32Kbps ~ 4096Kbps Per Channel | |
Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
|
Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec | |
Video Detection And Alarm | ||
Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering | |
Playback And Backup | ||
Sync Playback | 16CH: 1/4/9/16 | |
Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | |
Backup Mode | USB Device/Network | |
Third Party Support | ||
Third Party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | |
Network | ||
Interface | 16CH:1 RJ-45 Port (100M) | |
Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
Maximum User Access | 128 users | |
Smart Phone | iPhone, iPad, Android | |
Interoperability | ONVIF 16.12, CGI Conformant | |
Storage | ||
Internal HDD | 2 SATA Ports, up to 8TB capacity for each disk | |
eSATA | 1 Port, for PTZ Control | |
Auxiliary Interface | ||
USB | 16CH: 2x USB 2.0 | |
RS485 | 1 Port, for PTZ Control | |
Power | ||
Power Supply | 16CH: DC12V/4A | |
Power Consumption | 16CH:<10W | |
Component Environment | ||
Operational Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH | |
Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | |
Construction | ||
Dimensions | 1U, 375mm×287mm×53mm (14.8″ x 11.3″ x 2.1″) | |
Net Weight | 16CH: 1.6kg (3.6 lb) | |
Gross Weight | 16CH: 3.0kg (6.6 lb) |
