Main Processor

Embedded Processor

Operating System

Embedded LINUX

Perimeter Protection

Performance

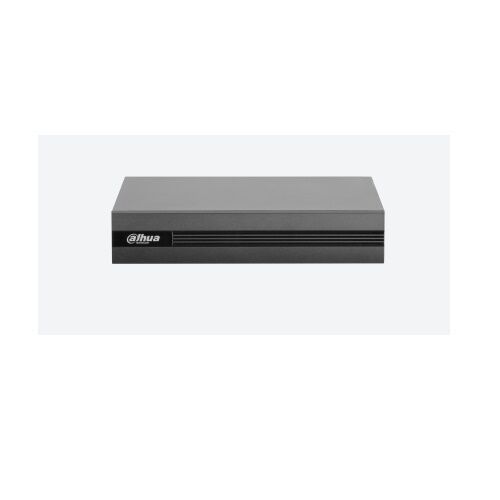

2 channels, 10 IVS for each channel XVR5232AN-I2

Object classification

Human/Vehicle secondary recognition for tripwire and intrusion

AI Search

Search by target classification (Human, Vehicle)

Face Recognition

Performance

Max 12 face pictures/sec processing

2 channels video stream face recognition, only support analog camera

Stranger Mode

Detect strangers’ faces (not in device’s face database). Similarity threshold can be set manually.

AI Search

Up to 8 target face images search at same time, similarity threshold can be set for each target face image.

Database Management

Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.

Database Application

Each database can be applied to video channels independently .

Trigger Events

Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.

SMD Plus

Performance

16 channels XVR5232AN-I2

AI Search

Search by target classification (Human, Vehicle)

Video and Audio

Analog Camera Input

32 channels, BNC

HDCVI Camera Input

5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera Input

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera Input

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera Input

PAL/NTSC

IP Camera Input

32 channels, each channel up to 6MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

AI Coding/H.265+/H.265/H.264+/H.264

Resolution

5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate

Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/

D1/CIF (1fps–25/30fps)

Sub stream: D1/CIF (1fps–15fps)

Bit Rate

32 Kbps–6144 Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
