Description

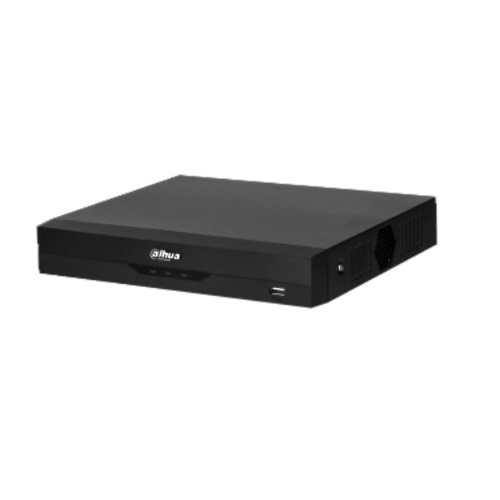

Dahua XVR5108HS-I3 PENTA – BRID DVR (5MP) is a versatile surveillance system that supports a wide range of camera technologies including HDCVI, HDTVI, AHD Analog, and IP cameras. This allows users to choose the camera type that best suits their needs. With support for up to 16TB of storage, the DVR can accommodate a large amount of recorded footage. Additionally, the full metal casing provides durability and protection for the system, ensuring its longevity and reliability in various environments.
Dahua XVR5108HS-I3 Specification
Model
Dahua XVR5108HS-I3
Type
08 Channel XVR
Video Input Channel (BNC)
8 channels
Video Compression/Format
AI Coding/ H.265+/ H.265/ H.264+/ H.264
Video Output (VGA)
1
Video Output (HDMI)
1
Max. Video Recording Res.
1920 x 1080
Video Bit Rate
32 kbps – 6144 kbps per channel
Analog & HD-TVI Video Input
8 channels, BNC
Audio Input Channel (RCA)
1 Channel, RCA
Audio Compression
G.711A, G.711U, PCM
Audio Output Channel
1-channel RCA
Two way Audio
Reuse audio in/out, RCA
Audio Bit Rate
64 kbps per channel
Dual Stream Support
Yes
Live View / Playback Resolution
5M-N, 4M-N, 1080p, 1080N, 720p, 960H, D1, CIF
Network Protocol
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Number HDD Interface (SATA)
1 SATA
Max HDD Support (GB,TB)
10TB
Max. Storage Support
10TB
eSATA
None
Network Interface (RJ45)
1 x RJ-45 Port
USB Port
2 x USB 2.0
Main Processor
Embedded Processor
Display Split
When IP extension mode not enabled: 1/4/8/9. When IP extension mode enabled: 1/4/8/9/16
Incoming Bandwidth
64 Mbps
Outgoing Bandwidth
64 Mbps
Interoperability
ONVIF 16.12, CGI Conformant
Video Detection
Motion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Operating System.
Embedded Linux
Power Supply
DC 12V/2A
Approx. Power Consumption
<7W (Without HDD)
Max. Power
7 W
Dimensions
260.0 x 237.9 x 47.6mm
Weight (Kg)
1.19 kg
Smart Phone Supported
iPhone, iPad, Android
Feature
Third-party Support: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more. Certifications: FCC: Part 15 Subpart B, CE: CE-LVD: EN 60950-1/IEC 60950-1, CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024. Search Mode: Time/Date, Alarm, MD and Exact Search (accurate to second), Playback Function: Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom. Backup Mode: USB Device/Network.
Others
Perimeter Protection: Performance: 1 channel, 10 IVS for each channel. Resolution: 1920 x 1080, 1280 x 1024, 1280 x 720. Multi-screen Display: When IP extension mode not enabled: 1/4/8/9, When IP extension mode enabled: 1/4/8/9/16. Max. User Access: 128 Users. Playback: 1/ 4/ 9, It changes to 1/4 split when Face or IVS & SMD is selected in AI Mode. Installation: Desktop installation. HDCVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps, AHD Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps, TVI Camera Input: 5MP, 4MP, 1080p@ 25/30 fps, 720p@ 25/30 fps, CVBS Camera Input: PAL/NTSC. IP Camera Input: 8+4 channels, each channel up to 6MP. AI Search: Search by target classification (Human, Vehicle).
Warranty Details
1 year
Country Of Origin
China
Made in/ Assemble
China
