DH-PFS3005-4ET-60
৳ 4,800.00
- 8-pin assignment PoE power supply
- Long-distance PoE
- PoE watchdog
- Wide working temperature
- Warranty 1 year
Call For Wholesale Best Price 01611605422 (WhatsApp)

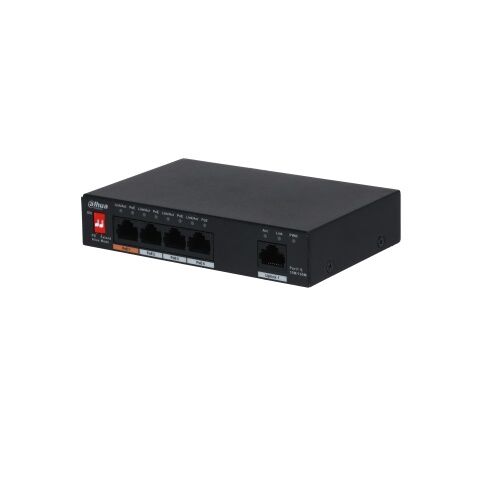

Dahua DH-PFS3005-4ET-60 A 5-port unmanaged desktop switch equipped with 4-port PoE, featuring intelligent PoE capabilities. The switch includes a Hi-PoE 60W port, distinguished by its orange color, for high-power PoE applications. With an 8-pin assignment PoE power supply, this switch is designed to provide long-distance PoE connectivity, ensuring reliable power delivery to connected devices even over extended distances.
Dahua DH-PFS3005-4ET-60 Specification
| DH-PFS3005-4ET-60 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Ethernet Port |
Port 1-4: 4 × RJ-45 10/100M (PoE) Port 5: 1 × RJ-45 10/100M (uplink) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Power Consumption |
Port 1 ≤ 60 W (Hi-PoE) port 2-4 ≤ 30 W total ≤ 60 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Idling: 0.8 W Full load: 60 W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Protocol |
IEEE802.3af, IEEE802.3at, and Hi-PoE |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply Pin |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Long Distance |
250-meter long-distance PoE transmission |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Power Management |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
PoE Watchdog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Performance |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Switching Capacity |
1.8 Gbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Forwarding Rate |
744 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packet Buffer Memory |
1 Mbit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Flow Control |
Enable by default |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Working Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Application Humidity |
5%– 95% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Input |
48 V – 57 V DC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Lighting Protection |
Common mode: 4 kV Differential mode: 2 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
ESD Protection |
Air discharge: 8 kV Contact discharge: 6 kV |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Wall-mount Installation |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anti-theft Lock Hole |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Weight |
0.30 kg (0.64 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension |
130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
