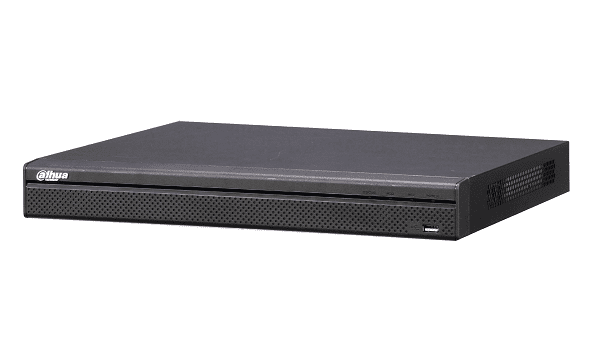

Dahua NVR 1108H Features

New 8 Channel NVR 4108H

Dahua NVR 1108H Up to Support  8 IP camera input
>H.264/MJPEG dual codec decoding
>Max 56Mbps incoming bandwidth
>HDMI/VGA simultaneous video output
>All channel synchronous realtime playback, GRID interface
>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
>ONVIF Version 2.3 conformance
>3D intelligent positioning with Dahua PTZ camera
>Support 1 SATA HDD up to 4TB, 2 USB2.0
>Support P2P, QR code
>Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) & DMSS

Dahua NVR 1108H Specifications

Model	NVR1108H
System
Main Processor	Dual-core embedded processor
Operating System	Embedded LINUX
Video& Audio
IP Camera Input	8 channel
Two-way talk	1 channel input, 1 channel output, RCA
Display
Interface	1 HDMI, 1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Display Split	1/4
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression	H.264/MJPEG
Resolution	1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480)& etc.
Record Rate	Max 56Mbps
Bit Rate	48~8192kbps
Record Mode	Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection& Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection	Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback	1/4
Search Mode	Time/Date, MD & Exact search (accurate to second), Smart search
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Network/Internal SATA burner
Network
Ethernet	1RJ-45 port (10/100Mbps)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support Dahua IP camera, DVR, NVS and etc.),SNMP, P2P
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Storage
Internal HDD	1 SATA port, up to 4TB
Auxiliary Interface
USB	2 ports (2 Rear), USB2.0
General
Power Supply	DC12V/2A
Power Consumption	10W (without HDD)
Working Environment	-10°C~+55°C/10%~90%RH/86~106kpa
Dimension(W×D×H)	Mini 1U, 325mm×250mmx55mm
Weight	1.25kg(without HDD)
