Description

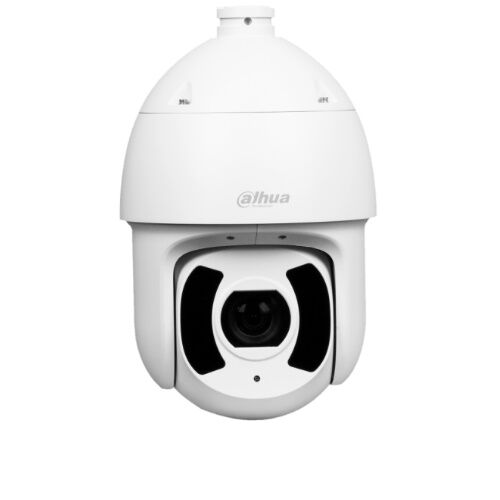

Dahua SD6CE445XA-HNR 4MP 45x Starlight IR WizSense Network PTZ Camera offers exceptional performance with its advanced features. It has a remarkable distance coverage of up to 250 meters (820 feet), ensuring clear and detailed surveillance. The camera’s focal length ranges from 3.95 mm to 177.75 mm, allowing for versatile zoom capabilities. Additionally, it has a close focus distance of 10 mm to 3,000 mm, enabling precise monitoring even at close range.
SD6CE445XA-HNR Specification
| Camera |
| Image Sensor |
1/2.8” STARVIS™ CMOS |
| Pixels |
4 MP |
| Max. Resolution |
2560 (H) × 1440 (V) |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
1/1 s–1/30,000 s |
| Minimum Illumination |
Color: 0.005 [email protected];B/W: 0.0005 [email protected];0 [email protected] (IR on) |
| Illumination Distance |
Distance up to 250 m (820 ft) |
| Illumination On/Off Control |
Auto/Manual |
| Illuminator Number |
6 |
| Lens |
| Focal Length |
3.95 mm–177.75 mm |
| Max. Aperture |
F1.6–F4.95 |
| Angle of View |
H: 70.3°–1.8°; V: 37°–1°; D: 69.3°–2° |
| Optical Zoom |
45x |
| Focus Control |
Auto/Manual |
| Iris Control |
Auto/Manual |
| Close Focus Distance |
10 mm–3,000 mm |
| DORI Distance |
| DORI Distance |
Detect |
Observe |
Recognize |
Identify |
| 3176 m(10420 ft) |
1271 m(4170 ft) |
635 m(2083 ft) |
318 m(1043 ft) |
| PTZ |
| Pan/Tilt Range |
Pan: 0°–360° endless; Tilt: -20°–90°,auto flip 180° |
| Manual Control Speed |
Pan: 0.1°–260° /s; Tilt: 0.1°–120° /s |
| Preset Speed |
Pan: 300° /s; Tilt: 200° /s |
| Presets |
300 |
| Tour |
8 (up to 32 presets per tour) |
| Pattern |
5 |
| Pan |
5 |
| Power up Action |
Auto restore to previous PTZ and lens status after power failure |
| Idle Motion |
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
| Artificial Intelligence |
| Perimeter Protection |
Tripwire, Intrusion.Support alarm triggering by target types(humanand vehicle)Filtering out false alarms caused by animals, rustling leaves, bright lights, etc |
| Auto Tracking |
Support |
| Video Structuralization |
Support human, motor vehicle and non-motor vehicle image capture |
| SMD Plus |
Support |
| Face Detection |
Support |
| General Intelligence |
| Event Trigger |
Motion detection, Video tampering , Scenechanging, Network disconnection, IP addressconflict, Illegal Access, Storage anomaly |
| General Intelligence |
Object Abandoned/Missing |
| Video |
| Compression |
H.265+/H.265/H.264+/H.264/MJPEG(Sub Stream) |
| Streaming Capability |
3 Streams |
| Resolution |
4M (2560 × 1440)/3M (2048 × 1536)/1080p (1920 ×1080)/720p (1280 × 720)/D1 (704 × 576/704 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate |
Main stream: 4M/3M (1–25/30 fps), 1080p/1.3M/720p (1–25/30 fps) |
| Sub stream1: D1/CIF (1–25/30 fps) |
| Sub stream2: 1080p (1–25/30 fps), 720p (1–25/30 fps) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.265/H.264: 3 Kbps–20,480 Kbps |
| Day/Night |
Auto (ICR) / Color / B/W |
| BLC |
Support |
| WDR |
120 dB |
| HLC |
Support |
| White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control |
Auto / Manual |
| Noise Reduction |
Ultra DNR (2D/3D) |
| Motion Detection |
Support |
| Region of Interest |
Support |
| Image Stabilization |
Electronic |
| Defog |
Support |
| Digital Zoom |
16x |
| Flip |
180° |
| Privacy Masking |
Up to 24 areas |
| Audio |
| Compression |
G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2 |
| Network |
| Ethernet |
RJ-45 (10Base-T/100Base-TX) |
| Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTMP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
| Interoperability |
ONVIF Profile S&G&T, API |
| Streaming Method |
Unicast / Multicast |
| User/Host |
20 users |
| Storage |
NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB |
| Browser |
IE, Chrome, Firefox, Safari |
| Management Software |
Smart PSS, DSS, DMSS |
| Smart Phone |
IOS, Android |
| Certifications |
| Certifications |
CE: EN55032/EN55024/EN50130-4FCC: Part15 subpartb, ANSI C63.4- 2014 |
| Port |
| RS485 |
1 |
| Audio I/O |
1 (Line in; bare wire)/1 (Line out; bare wire) |
| Alarm I/O |
7/2 |
| Power |
| Power Supply |
DC 24 V/2.5 A ± 25%; PoE+(802.3at) |
| Power Consumption |
13 W, 26 W (IR On, Heater On) |
| Environment |
| Operating Conditions |
–40 °C to 70 °C (–40 °F to +158°F) / Less than 95% RH |
| Protection |
IP67, IK10 |
| Structure Dahua SD6CE445XA-HNR 4MP 45x Starlight IR WizSense Network PTZ Camera |
| Casing |
Metal |
| Dimensions |
φ209 × 337.4 mm |
| Net Weight |
5.9 kg (13 lb) |
| Gross Weight |
9.6 kg (21.16 lb) |
