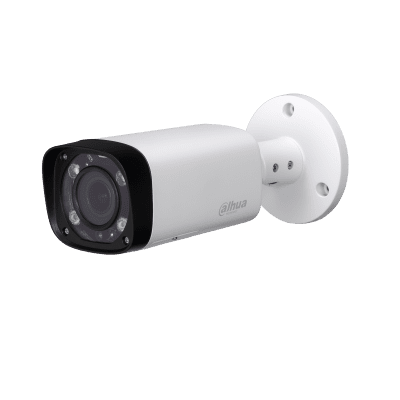

IPC-HFW2320R-ZS-VFS-IRE6

IPC-HFW2320R-ZS-VFS-IRE6 (EoL)

৳ 10,000.00

Varifocal IP Camera

Out of stock

Category:

Description

IPC-HFW2320R-ZS-VFS-IRE6 Features

3MP IR Bullet Network Camera
> 1/3” 3Megapixel progressive CMOS
> H.264+ & H.264 dual-stream encoding
> 20fps@3M(2048×1536) & 25/30fps@2M (1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD card slot, up to 128GB
> 2.7~12mm varifocal lens
> Max IR LEDs Length 60m
> IP67, PoE
IPC-HFW2320R-ZS-VFS-IRE6 Specifications
Camera
Image Sensor1/3” 3Megapixel progressive CMOS
Effective Pixels2304(H) x1536(V)
RAM/ROM256MB/16MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
Minimum Illumination0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
S/N RatioMore than 50dB
IR DistanceDistance up to 60m(197ft)
IR On/Off ControlAuto/ Manual
IR LEDs4
Lens
Lens TypeMotorized(-ZS),Manual(-VFS)
Mount TypeBoard-in
Focal Length2.7mm~12mm
Max. ApertureF1.4
Angle of ViewH:87°~29°, V:42°~15°
Focus ControlMotorized(-ZS),Manual(-VFS)
Close Focus Distance0.3m
DORI DistanceLensDetectObserveRecognizeIdentify
W62m(203ft)25m(82ft)12m(39ft)6m(20ft)
T175m(574ft)70m(230ft)35m(115ft)18m(59ft)
PTZ
Pan/Tilt RangePan:0° ~360 ° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
CompressionH.264+/H.264
Streaming Capability2 Streams
Resolution3M(2304×1296)(2048×1536)/

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)

Frame Rate3M(1~20fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate ControlCBR/VBR
Bit RateH264:24K ~ 8192Kbps
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Natural/Street Lamp/Outdoor/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Motion DetetionOff / On (4 Zone, Rectangle)
Region of InterestOff / On (4 Zone)
Electronic Image Stabilization(EIS)N/A
Smart IRSupport
Digital Zoom16x
Flip0°/90°/180°/270°
MirrorOff / On
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
CompressionN/A
Network
EthernetRJ-45 (10/100Base-T)
ProtocolHTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Max. User Access10 Users/20 Users
Edge StorageNAS(Network Attached Storage)

Local PC for instant recording

Micro SD Card 128GB

Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS, Easy4ip
Smart PhoneIOS, Android
Certifications
CertificationsCE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video InterfaceN/A
Audio InterfaceN/A
RS485N/A
AlarmN/A
Electrical
Power SupplyDC12V PoE (802.3af)(Class 0)
Power Consumption< 12.95W
Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress ProtectionIP67
Vandal ResistanceN/A
Construction
CasingMetal
Dimensions72mm×80mm×212.8mm ((2.8″ x 3.1″x 8.4″))
Net Weight0.685Kg (1.51lb)
Gross Weight0.86Kg (1.90lb)
Download Datasheet
