Sale!

IPC-HDW2439T-AS-LED-S2

৳ 10,800.00

  • Make: Dahua Technology
  • Model code:IPC-HDW2439T-AS-LED-S2
  • Chip Inch Size: 1/3 inch
  • Colour Type: Colour / Monochrome
  • camera:4mp full color
  • Audio mic
Category:

Description

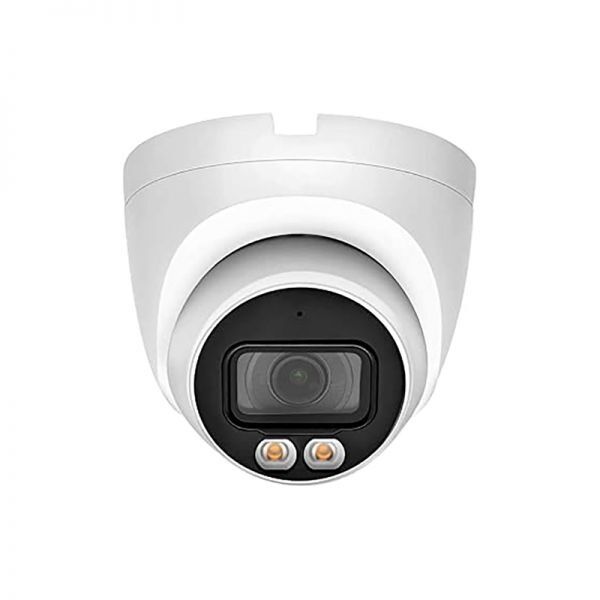

Dahua IPC-HDW2439T-AS-LED-S2 is a high-quality 4MP Full Color 30 Meter IR Dome Camera that offers exceptional surveillance capabilities. This advanced camera is equipped with a built-in microphone, allowing for clear audio recording. Additionally, it supports a maximum storage capacity of 256 GB through a Micro SD card, ensuring ample space for storing recorded footage. With its impressive 30-meter infrared range, this camera provides excellent night vision capabilities, enabling reliable monitoring even in low-light conditions. The Dahua IPC-HDW2439T-LED-S2 is a reliable and feature-rich surveillance solution that offers enhanced security and peace of mind.

IPC-HDW2439T-AS-LED-S2 Specification

Camera
Image Sensor 1/3” 4Megapixel progressive CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination 0.004 [email protected]
S/N Ratio >56 dB
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°Tilt: 0°–78°Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm3.6 mm
Max. Aperture 2.8 mm: F1.03.6 mm: F1.0
Field of View 2.8 mm: Horizontal 96° × Vertical 51° × Diagonal 115°3.6 mm: Horizontal 81° × Vertical 44° × Diagonal 97°
Iris Type Fixed
Close Focus Distance 2.8 mm: 1.3 m (4.3 ft)3.6 mm: 1.8 m (5.9 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8mm 56.0 m(183.7 ft) 22.4 m(73.5 ft) 11.2 m(36.7 ft) 5.6 m(17.1 ft)
3.6mm 72.0 m(236.2 ft) 28.8 m(94.5 ft) 14.4 m(47.2 ft) 7.2 m(23.6 ft)
Smart event
IVS Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
Video Frame Rate Main stream:2688 × 1520 (1 fps–20 fps)2560 × 1440 (1 fps–25/30 fps)Sub stream:704 × 576 (1 fps–20/25 fps)704 × 480 (1 fps–20/30 fps)
Stream Capability 2 streams
Resolution 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest(RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 72 M.)
Storage FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser IEChromeFirefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12V DC/PoE (802.3af)
Power Consumption <7.4 W
Environment
Operating Conditions –40 °C to +60 °C (–40 °F to +140 °F)/less than ≤ 95% RH
Storage Temperature –40 °C to +60°C (–40 °F to +140 °F)
Protection Grade IP67
Structure
Casing Inner core: metal; cover: plastic ( pedestal: plastic )
Dimensions 100.9 mm × Φ109.9 mm (4.0″ × Φ4.3″)
Net Weight 0.365 kg (0.8 lb)
Gross Weight 0.527 kg (1.2 lb)
