HAC-HFW-1000R

৳ 2,150.00 ৳ 2,050.00

Resolution : 1 MP / 720 P | IR Distance : 20 Meter |1 / 4 ’’ 1 MP CMOS

Category: Tag:

Description

Dahua HD Camera HAC-HFW-1000R Features

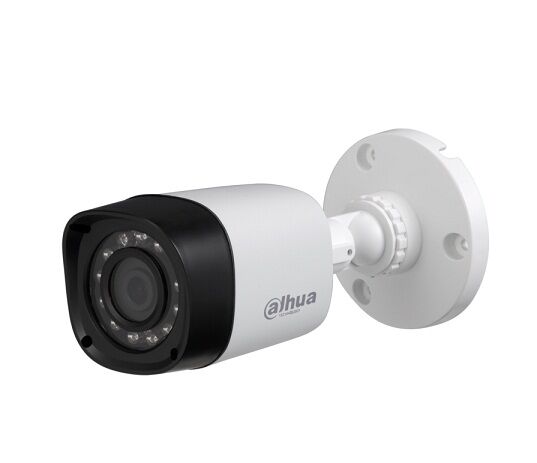

Dahua HD Camera HAC-HFW-1000R 1MP IR Mini-Bullet HD Camera

 1 megapixel CMOS  25/[email protected]  High speed, long distance real-time transmission  Day/Night(ICR), AWB, AGC, BLC, 2D-DNR  3.6mm fixed lens  Max. IR LEDs length 15m, Smart IR  IP67, DC12V

Dahua HD Camera HAC-HFW-1000R Specifications

Camera HAC-HFW1000R
Image Sensor 1/4″ CMOS
Effective Pixels 1280(H)×720(V), 1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000sNTSC: 1/30~1/100000s
Minimum Illumination 0.05Lux/F2.0, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm Optional)
Max Aperture F2.0
Angle of View H: 60° (83.4°)
Focus Control N/A
Close Focus Distance 600mm (500mm)23.6 (19.69)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution 720P (1280×720)
Frame Rate 25/[email protected]
Video Output 1-channel BNC HDCVI high-definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface N/A
Electrical
Power Supply 12V DC ±25%
Power Consumption Max 2.8W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance IP67
Construction
Casing Plastic
Dimensions 154.3mm×69.8mm×69.8mm (6.07″×2.75″×2.75″)
Net Weight 0.20kg (0.44lb)
Gross Weight 0.27kg (0.60lb)

Dahua HD Camera Demo Video



Download Dahua HD Camera HAC-HFW1000R Datasheet

Should you buy it?

If you are looking 1 megapixel HD camera for your home or office security, this model only for you in the current market.

Is there a better alternative?

Yes, you can choose 2 Megapixel  HD Camera

Our Opinion

The best HD camera we tested is the Dahua. The combination of excellent video quality – both during the day and at night – and its ease of use and stable connection to makes this a great choice no matter what you plan to use it for. Although it doesn’t have the highest video resolution, it produced clear video with smooth movement, and it includes most of the features you would want in an HD camera that’s used for home and Office security.This is a ip66 weatherproof security camera, can use outside also.

Best compatible HD DVR  for this HD Camera is Dahua XVR4104.

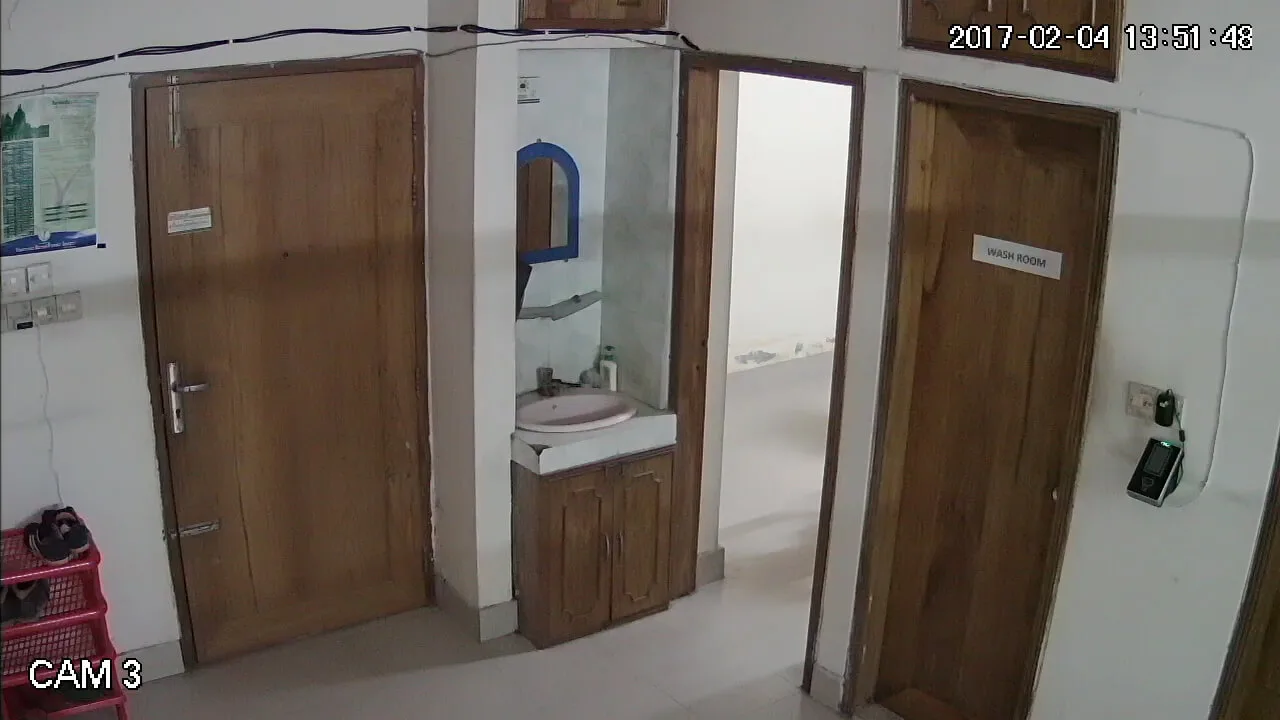

HAC-HFW-1000R Realtime Picture

HAC-HFW-1000R realtime picture
