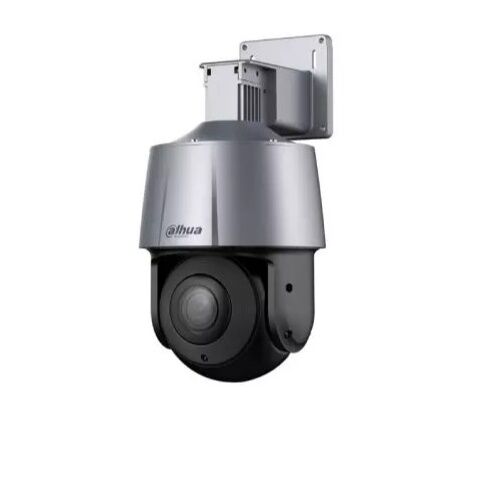

SD3A205-GNP-PV

৳ 17,400.00

  •  Model:SD3A205-GNP-PV
  • 1/2.8″ 2Megapixel STARVIS™ CMOS
  • Starlight technology
  • IR distance up to 30 m
  • Deep-learning-based perimeter protection
  • SMD Plus
  • PoE
  • IP66
  • Warranty:1 year
Category:

Description

Dahua SD3A205-GNP-PV 2MP 5X Starlight IR AI WizSense Network PTZ Camera features a high-quality 1/2.8″ 2Megapixel STARVIS™ CMOS sensor, ensuring exceptional image clarity and detail. With its advanced Starlight technology, this camera is capable of capturing clear and vivid images even in low-light conditions. Additionally, SD3A205-GNP-PV boasts an impressive IR distance of up to 30 meters, allowing for effective surveillance in complete darkness.

SD3A205-GNP-PV specification

Camera
Image Sensor 1/2.8″ CMOS
Pixel 2MP
Max. Resolution 1920 (H) × 1080 (V)
ROM 256 MB
RAM 512 MB
Electronic Shutter Speed 1/3 s–1/100000 s
Scanning System Progressive
Min. Illumination Color: 0.002 Lux@F1.8
B/W: 0.0002 Lux@F1.8
0 Lux (illuminator on)
Illumination Distance 30 m (98.43 ft)
Illuminator On/Off Control Manual/SmartIR/Off
Illuminator Number 4 IR lights; 1 white light
Lens
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.8–F3.3
Field of View H: 101.6°–33.5°; V: 52°–18.7°; D: 124.7°–38.5°
Optical Zoom 5x
Focus Control Auto/Semi-Auto/Manual
Close Focus Distance 1.2 m (3.94 ft)
Iris Control Fixed
DORI Distance Detect Observe Recognize Identify
131 m (429.79 ft) 52.3 m (171.59 ft) 26 m (85.30 ft) 12.8 m (41.99 ft)
PTZ
Pan/Tilt Range Pan: 0°–355°
Tilt: -15°–+90°
Manual Control Speed Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–56°/s
Preset Speed Pan: 81°/s; Tilt: 43°/s
Preset 300
Power-off Memory Support
Idle Motion Preset
Artificial Intelligence
Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Video
Compression H.265; H.264B; H.264M; H.264H; MJPEG; MJPEG (Sub Stream); H.265+; H.264+
Streaming Capability 3 streams
Resolution 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate Main stream: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)Sub stream 1: D1/CIF (1–25/30 fps)Sub stream 2: 1080P (1–25/30 fps); 1.3M (1–25/30 fps); 720P (1–25/30 fps)
Bit Rate Control Variable/Constant
Bit Rate H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps
Day/Night Auto (ICR)
BLC Support
WDR DWDR
HLC Support
White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D/3D
Motion Detection Support
Region of Interest (RoI) Support
Defog Electronic
Flip 180°
S/N Ratio ≥ 55 dB
Audio
Compression G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMP
Interoperability ONVIF Profile S&G&T; CGI
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP; Micro SD card (256 G); NAS
Browser IE7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari
Management Software DMSS
Mobile Phone iOS, Android
Certification
Certifications CE: EN55032/EN55024/EN50130-4/EN 55035/EN 61000-3-2/EN 61000-3-3/EN 62368-1FCC: Part15 subpartB, ANSI C63.4- 2014
Port
Audio Input 1 (Built-in Mic)
Audio Output 1 (Built-in Speaker)
Two-way Audio Support
Alarm Linkage Capture; preset; SD card record; send email
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection
Power
Power Supply 12V DC/2A ± 10% (supports PoE)
Power Consumption Basic: 5W
Max: 12W (illuminator on)
Power Adapter Included
Environment
Operating Temperature -30°C to +60°C (-22°F to 140°F)
Operating Humidity ≤ 95%
Protection IP66; TVS 2000V lightning proof; surge protection; voltage transient protection
Structure
Dimensions 271.7 mm × 142.5 mm × 124.1 mm (10.70″ × 5.61″ × 4.89″)
Net Weight 1.1 kg (2.43 lb)
Gross Weight 1.51 kg (3.33 lb)
