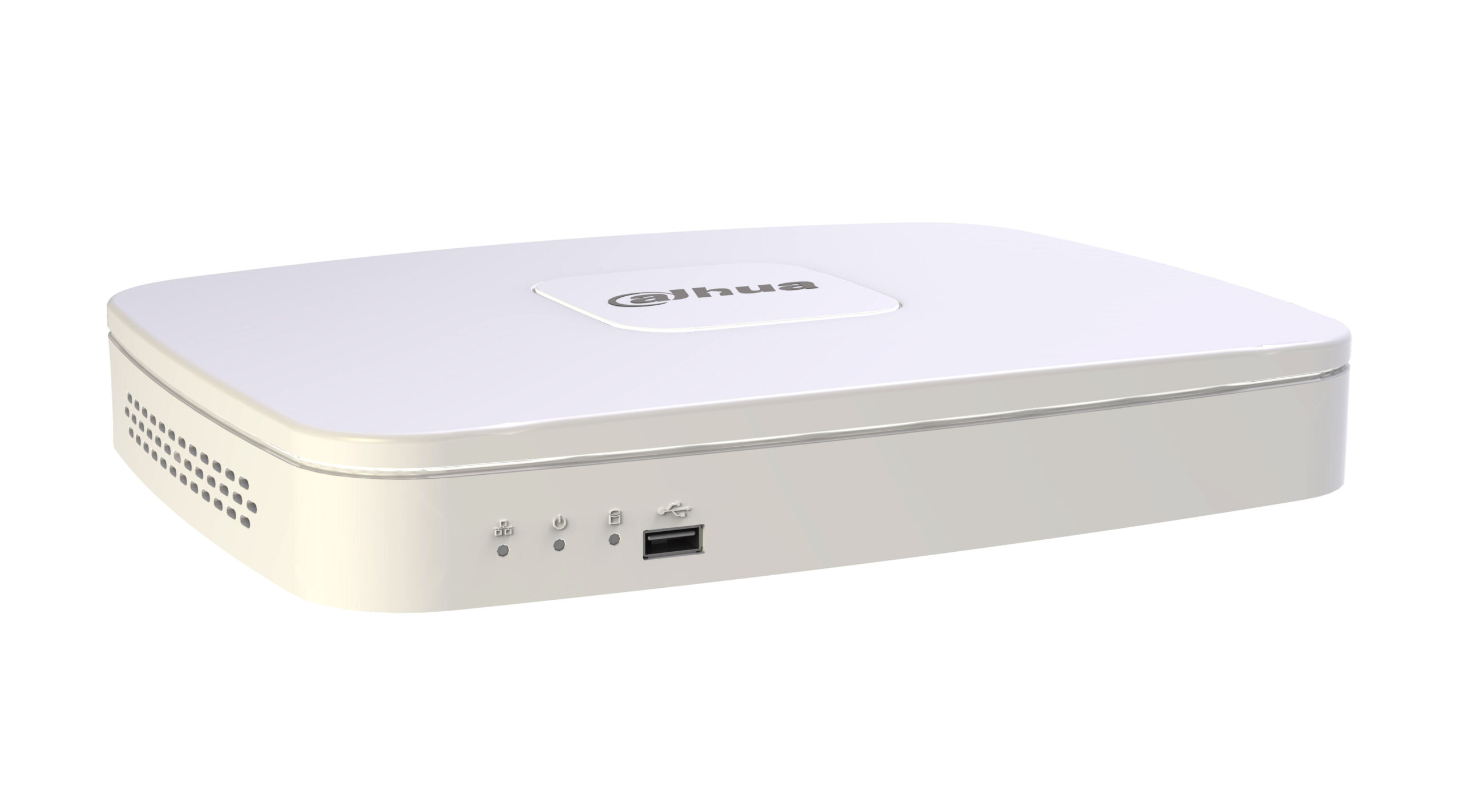

DHI-XVR-5108C

Dahua HDCVI DVR DHI-XVR-5108C Features

DHI-XVR-5108C Support HDCVI/Analog/IP Video input

8 Channel Penta-brid 1080P Lite Smart 1U Digital Video Recorder

>Embedded processor
>H.264+/H.264 dual-stream video compression
>Support HDCVI/AHD/TVI/ CVBS/IP video inputs
>Max 6/12 channels IP camera inputs, each channel up to 5MP
>Max 24/48Mbps Incoming Bandwidth
>Smart Search and Intelligent Video System

DHI-XVR-5108C Specifications

System
Main Processor	Embedded Processor
Operating System	Embedded LINUX
Display
Interface	1 HDMI ,1 VGA
Resolution	1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display	4CH: 1/4/6 8CH: 1/4/8/9/16
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input	—
Relay Output	—
Tracking Trigger Event	—
Playback and Backup
Playback	4CH: 1/4 8CH:1/4/9
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	1 SATA Port, up to 6TB capacity
HDD Mode	Single
eSATA	—
Auxiliary Interface
USB	2 USB Ports (2 USB 2.0)
RS232	—
Third-party Support
Third-party Support	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Audio and Video
HDCVI Camera Input	4/8 Channel
IP Camera Input	4+2/8+4 Channel, each channel up to 5MP
Audio In/Out	1/1
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	H.264+/H.264
Resolution	1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate	Main stream: 1080P(1~15fps) 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram:D1/CIF/QCIF(1~15fps)
Bit Rate	1Kbps ~ 6144Kbps Per Channel
Record Mode	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface	1 RJ-45 Port (100M)
Network Function	HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android
Interoperability	ONVIF 2.4.1, CGI Conformant
Electrical
Power Supply	DC12V/2A
Power Consumption	<15W (Without HDD)
Environmental
Operating Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions	0°C ~ +50°C (+32°F ~ +122°F), 0 ~ 90% RH
Construction
Dimensions	Smart 1U, 205×211×45mm (8.1“×8.3”×1.8“)
Net Weight	0.5kg (1.1lb) (without HDD)
Gross Weight	1kg (2.2lb)
Installation	Desktop installation
Certifications
CE	EN 55032: 2012+AC 2013 (Class B) EN 61000-3-2 : 2014 EN 61000-3-3 : 2013
FCC	CISPR PUB. 22, FCC Part 15 Subpart B and ICES 003 Issue 6
UL	IEC 61000-4-3 : 2006+A1:2007+A2:2010
