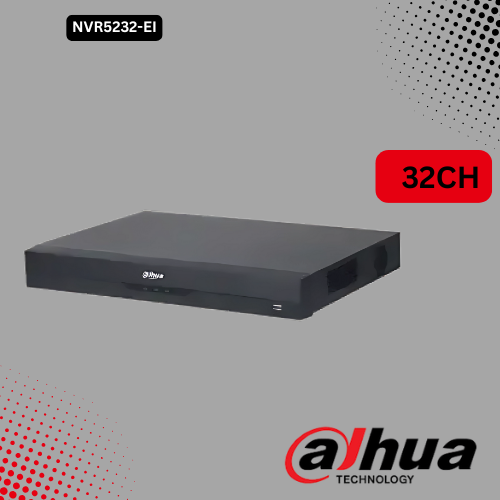

Dahua NVR5232-EI
৳ 29,000.00
Key Features
- Model: NVR5232-EI
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
- Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps.
- Max. 384 Mbps incoming/recording/outgoing bandwidth.
- Support AcuPick with Max. 16-Channel.
Description
Specification
| System | ||
| Main Processor | Industrial-grade processor | |
| Operating System | Embedded Linux | |
| Audio and Video | ||
| IP Camera Input | 32 Channels | |
| Display | ||
| Interface | 1-ch VGA output 1-ch HDMI output | |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF | |
| Decoding Capacity | AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps | |
| Multi-Screen Display | Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16 | |
| Recording | ||
| Compression | Video: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG Audio: G.711a; G.711u; PCM; G726 | |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF | |
| Record Mode | General, motion detection; intelligent; alarm; POS | |
| Video Detection And Alarm | ||
| Trigger Event | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm | |
| Video Detection | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map | |
| Relay Output | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email | |
| Playback And Backup | ||
| Search Mode | Manual; schedule (general; MD; alarm; MD & alarm; intelligent) | |
| Playback Function | Play; pause; stop; fast forward; fast backward; rewind; play by frame Full screen; backup (cut/file) ; partially enlarge; audio on/off | |
| Backup Mode | USB device and network | |
| Third Party Support | ||
| Third Party Support | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung | |
| Network | ||
| Ethernet Port | 1(10/100/1000 Mbps Ethernet port, RJ-45) | |
| Smart Phone | Android; iOS | |
| Interoperability | ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK | |
| Storage | ||
| Internal HDD | 2 SATA ports, each disk can contain up to 16 TB. This limit varies depending on the environment temperature. | |
| Auxiliary Interface | ||
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) | |
| RS232 | 1x channel, used to debug and pass through serial data | |
| RS485 | 1x channel, used to control PTZ, and it supports multiple protocols | |
| Power | ||
| Power Supply | 12 VDC, 4 A | |
| Power Consumption | Total output of NVR is ≤ 10 W (without HDD) | |
| Component Environment | ||
| Operational Conditions | –10 °C to +55 °C (14 °F to +131 °F) | |
| Storage Conditions | –20 °C to +60 °C (–4 °F to +140 °F) | |
| Construction | ||
| Dimensions | 375.0 mm × 284.4 mm x 56.0mm (14.76″ × 11.20″ × 2.20″) (W × D × H) | |
| Net Weight | 1.57 kg (3.46 lb) | |
| Gross Weight | 2.73 kg (6.02 lb) | |
| Warranty | ||
| Manufacturing Warranty | 1 Year | |
