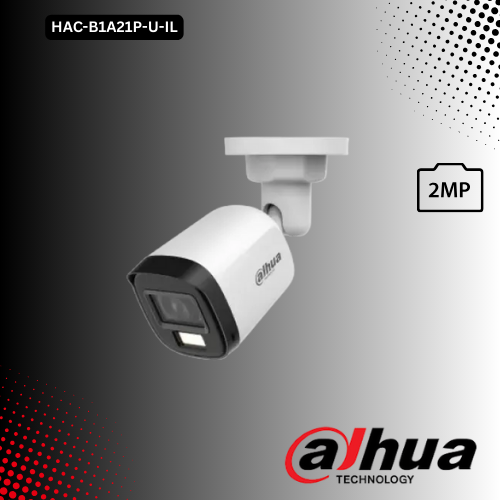

Dahua HAC-B1A21P-U-IL
৳ 1,100.00
Key Features
- Model: HAC-B1A21P-U-IL
- Max 30 fps@2MP
- IR Distance: 30 m illumination distance
- 3.6 mm fixed lens
- IP67 Waterproof, Smart Dual Light
Description
Specification
| General | ||
| Casing | Metal front cover + plastic rear barrel + metal bracket | |
| Dimensions | 146.1 mm × 70.0 mm × 69.8 mm (5.75″ × 2.76″ × 2.75″) | |
| Weight | 0.23 kg (0.51 lb) | |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Power Supply | 12 VDC ± 30% | |
| Power Consumption | Max 3.3 W (12 VDC, WLED on) | |
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Effective Pixels | 1920 (H) × 1080 (V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s | |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on) | |
| S/N Ratio | >65 dB | |
| IR Distance | IR: 30 m (98.43 ft); Warm light: 20 m (65.62 ft) | |
| IR On/Off Control | Auto / Manual | |
| IR LEDs | 2 (Warm light);2 (IR light) | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | |
| Max Aperture | F2.0 | |
| Angle of View | 2.8 mm: H: 100°; V: 54°; D: 117° 3.6 mm: H: 80°; V: 43°; D: 94° 6 mm: H: 43°; V: 24°; D: 50° | |
| Close Focus Distance | 2.8 mm: 0.5 m (1.64 ft) 3.6 mm: 0.8 m (2.62 ft) 6 mm: 2.4 m (7.87 ft) | |
| Video | ||
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC Mode | BLC; HLC; DWDR | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 2D NR | |
| Interface | ||
| Audio Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Video Interface | One channel built-in mic | |
| Special Features | ||
| Features | Smart Dual Light. 30 m illumination distance. Super Adapt. Built-in MIC. IP67 | |
| Warranty | ||
| Warranty | 1 Year | |
