Description

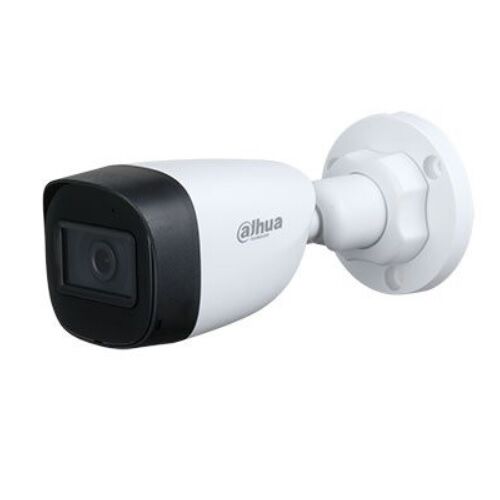

DH-HAC-HFW1209CP-LED System Overview
DH-HAC-HFW1209CP-LED 2MP full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total dark conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts one powerful warm white LED illuminators, covering an effective range up to 20 m (65.61 ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots.
Full-color
The camera adopts F1.6 large aperture lens and 1/2.8″ high performance sensor. With higher amount of absorbed light and advanced image processing algorithm, the camera can present 24/7 colored image that provides color details to accurately identify people or objects in low light conditions.
DH-HAC-HFW1209CP-LED Specification:
| DH-HAC-HFW1209CP-LED Camera Feature | ||
| Image Sensor | 1/2.7″ CMOS | |
| Effective Pixels | 1920(H)×1080(V), 2MP | |
| IR Distance | Up to 20m (66feet) | |
| Others | Scanning System Progressive Electronic Shutter Speed PAL: 1/25~1/100000s NTSC: 1/30~1/100000s Minimum Illumination 0.04Lux/F1.85, 30IRE, 0Lux IR on S/N Ratio More than 65dB |
|
| Lens | ||
| Type | Fixed lens / Fixed iris | |
| Focal Length | 3.6mm (6mm Optional) | |
| Aperture | F1.85 | |
| Angle of View | H: 93° ( 54.7°) | |
| Others | 1/2.8″ CMOS; 2 MP, HDCVI (switchable to CVBS); f = 2.8 mm (viewing angle 106 °); Recording: 1080p – 25 fps, 720p – 25/50 fps; Functions: 2D DNR / AGC / BLC / DWDR / HLC; LED-backlight up to 20 m; degree of protection IP67; power supply DC 12V. | |
| Physical Specification | ||
| Dimension | 70mm×70mm×149mm (2.76″×2.76″×5.87″) | |
| Weight | Net Weight 0.14kg (0.31lb) Gross Weight 0.17kg (0.37lb) |
|
| Power | Power Supply 12V DC ±30% Power Consumption Max. 2.7W (12V DC, IR on) |
|
| Warranty | ||
| Warranty | 12 months comprehensive warranty of hardware. No warranty will be provide for burning internal circuits of equipments due to voltage fluctuation and over voltage or physical damage. | |
