Sale!

HAC-HDW1400R

Original price was: ৳ 2,800.00.Current price is: ৳ 2,500.00.

4 Megapixel

Category:

Description

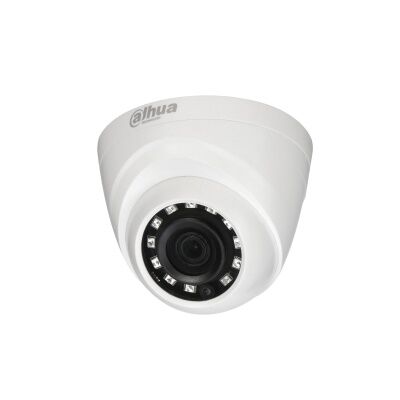

HAC-HDW1400R 4MP HDCVI IR Eyeball Camera

Max 30fps@4MP | HD and SD output switchable 3.6mm fixed lens (2.8mm, 6mm optional) | Max. IR length 20m, Smart IR | IP67, DC12V





HAC-HDW1400R Specification

Camera
Image Sensor 1/3″ CMOS
Effective Pixels 2688(H)×1520(V), 4.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination 0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 12
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F2.0
Angle of View H: 84.8° (99.7°/52.5°)
Focus Control N/A
Close Focus Distance 1100mm (800mm/2200mm)

43.3” (31.5”/86.6”)

DORI Distance
Note: The DORI distance is a “general proximity” of distance

which makes it easy to pinpoint the right camera for your needs.

The DORI distance is calculated based on sensor specification

and lab test result according to EN 62676-4 which defines the

criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance
Detect 25px/m

(8px/ft)

2.8mm: 63m(208ft)

3.6mm: 80m(262ft)

6mm: 117m(385ft)

Observe 63px/m

(19px/ft)

2.8mm: 25m(83ft)

3.6mm: 32m(105ft)

6mm: 47m(154ft)

Recognize 125px/m

(38px/ft)

2.8mm: 13m(42ft)

3.6mm: 16m(53ft)

6mm: 23m(77ft)

Identify 250ppm

(76px/ft)

2.8mm: 6m(21ft)

3.6mm: 8m(26ft)

6mm: 12m(39ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution 4MP (2560×1440)
Frame Rate 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC high definition video output

CVBS video output (Can switch)

Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface N/A
Eelectrical
Power Supply 12V DC ±25%
Power Consumption Max 3.2W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67
Construction
Casing Plastic
Dimensions 154.3mm×69.8mm×69.8mm (6.07″×2.75″×2.75″)
Net Weight 0.15kg (0.33lb)
Gross Weight 0.22kg (0.49lb)
