Description

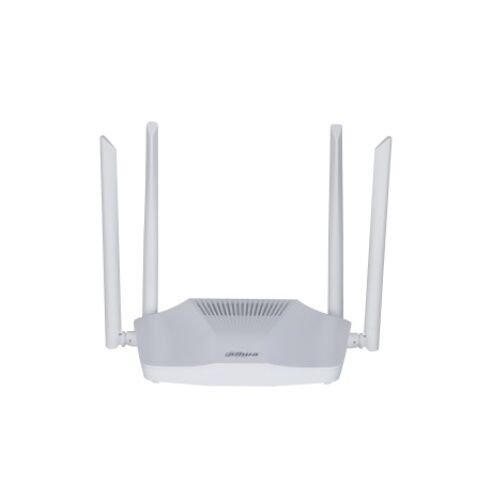

Dahua WR5200-IDC wireless router features four antennas and offers AC1200 dual-band Wi-Fi, with speeds of 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band. It includes one WAN port with 10/100 Mbps RJ-45 and three LAN ports with 10/100 Mbps RJ-45 each, ensuring stable connectivity. The router is designed for 24/7 operation, guaranteeing reliable performance without interruptions.
Dahua WR5200-IDC Specification
Function | ||
Encryption Type | WPA-PSK; WPA2-PSK | |
Network Mode | Router | |
Configuration Management | Web configuration | |
Firmware Update | Web update | |
Wireless Certification | CE; FCC | |
Power Consumption | < 7.2 W | |
Security Mechanism | IP/MAC filtering, hidden network name; WPA/WPA2, hidden SSID | |
Internet Protocol | HTTP | |
NAT | Port mapping | |
Software Functions | WISP mode; Guest network; Parental control; One-click speed testing; Troubleshooting | |
Hardware | ||
Wireless Standard | IEEE802.11 a/n/ac; IEEE802.11 b/g/n | |
Reset Button | Reset to factory settings | |
WAN Port | 1 × 10 /100 Mbps RJ-45 | |
WAN Port Connection Mode | Static IP; DHCP; PPPoE | |
LAN Port | 3 × 10 /100 Mbps RJ-45 | |
Indicator | Red: Network disconnected; Blue: Network connected | |
Performance | ||
Working Frequency | 125 MHz | |
Modulation Type | OFDM | |
Antenna | External omnidirectional antenna | |
Max. Output Power | 5.6 W | |
Transmission Distance | 150 m (492.13 ft) (open areas) | |
Air Interface Rate | 300 Mbps; 867 Mbps | |
Optimal Transmission Distance | 5 m–10 m (16.40 ft–32.81 ft) | |
MAC Table Size | 1K | |
General | ||
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | |
Storage Temperature | –20 °C to +70 °C (–4 °F to +158 °F) | |
Operating Humidity | 5%–95% | |
Product Dimensions | 200.0 mm × 124.4 mm × 28.0 mm (7.9″× 4.9″ × 1.1″) (L × W × H) | |
Gross Weight | 0.71 kg (1.6 lb) | |
Net Weight | 0.28 kg (0.6 lb) | |
Packing Dimensions | 420.0 mm × 297.0 mm × 80.0 mm (16.5″ × 11.7″ × 3.1″) (L × W × H) | |
RAM | 128M | |
Power Input | 12 V DC, 0.6A |
