Description

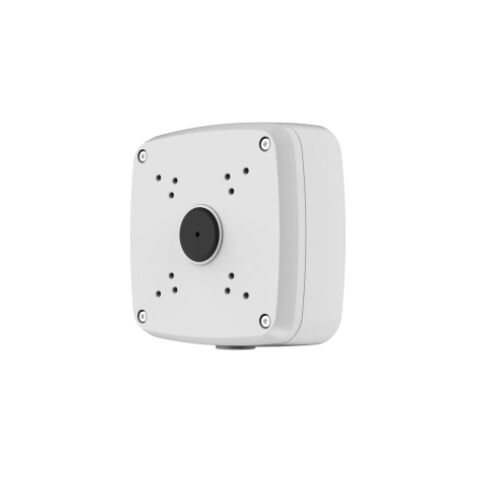

Dahua DH-PFA121-V2 junction box is designed to be waterproof and has an aesthetic appeal.
It is made of aluminum material and is rated IP66 for protection against dust and water ingress.
Dahua DH-PFA121-V2 Specification
| Model | DH-PFA121 |
| General | |
| Material | Aluminum |
| Dimension (WxHxD) | 134.0mmx133.5mmx56.0mm (5.28”x5.25”x2.20”) |
| Pipe Thread | G3/4” |
| Weight | 0.54kg(1.19lb) |
| Load Bearing | 3.0kg(6.61lb) |
| Color | White |
| Protection | IP66 |
| Operating Temperature | -40ºC~+60ºC(-40℉~+140℉) |
| Humidity | 0~90% RH |
| Applicable Model | Please see “Accessory Selection” |
