DH-HAC-HFW1239TLMP-A-LED

৳ 3,190.00

> Full-color starlight
> 40m LED distance
> Max. 30fps@1080P
> CVI/CVBS/AHD/TVI Switchable
> Built-in mic(-A)
> 3.6mm fixed lens (2.8mm Optional)
> IP67, 12V±30% DC

Category:

Description

DH-HAC-HFW1239TLMP-A-LED System Overview:

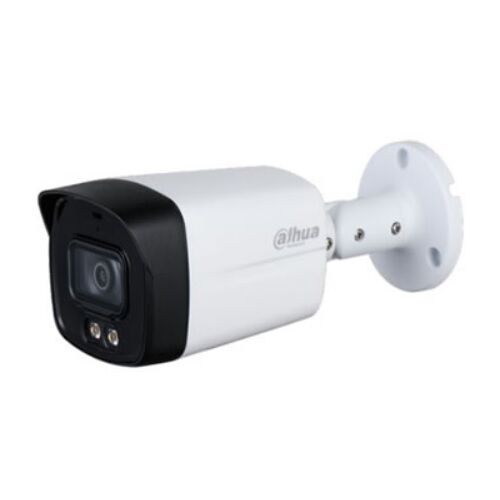

DH-HAC-HFW1239TLMP-A-LED 1080P full HD color video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The full-color starlight HDCVI camera presents a high quality color image with rich details even in total darkness conditions. It offers various fixed lens models with a multi-language OSD and HD/SD switchable output. It adopts two powerful warm white LED illuminators, covering an effective range up to 40m(131.23ft). The LEDs switch on automatically in darkness to capture detail-packed full-color images 24/7, ensuring anthentic identificaiton of objects. It is an ideal choice for applications such as schools, retail centers and parking lots.

DH-HAC-HFW1239TLMP-A-LED Specification:

Camera

Image Sensor

1/2.8 inch 2.16 Mega Pixels CMOS

Effective Pixels

1920 (H)×1080 (V), 2MP

Electronic Shutter Speed

PAL:1/25s–1/100000s
NTSC:1/30s–1/100000s

Minimum Illumination

0.005Lux/F1.6, 30IRE, 0Lux white Light on

Fill Light (White Light) Distance

Distance up to 40m (131.23ft)

Fill Light On/Off Control

Auto; Manual

Fill Light Number

2

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–180°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8m/3.6mm

Max. Aperture

F1.6

Angle of View

2.8mm:

126.2°×106.0°×56.5° (diagonal x horizontal x vertical)

3.6mm:

103.6°x86.9°x46.3° (diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8mm: 0.6m (1.97ft)

3.6mm: 1.2m (3.94ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

38.6m (126.6ft)

15.4m (50.5ft)

7.7m (25.3ft)

3.9m (12.8ft)

3.6mm

55.2m (181.1ft)

22.1m (72.5ft)

11.0m (36.0ft)

5.5m (18.0ft)

Video

Video Frame Rate

CVI:

PAL: 1080@25fps, 720@25fps, 720@50fps;

NTSC: 1080@30fps, 720@30fps, 720@60fps

AHD: PAL: 1080@25fps,720@25fps;

NTSC: 1080@30fps,720@30fps

TVI: PAL: 1080@25fps,720@25fps,720@50fps;

NTSC: 1080@30fps,720@30fps,720@60fps

CVBS: PAL: 960×576H;

NTSC: 960×480H

Resolution

1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480)

BLC

BLC/HLC/WDR

WDR

DWDR

White Balance

Auto; Manual

Gain Control

Auto; Manual

Noise Reduction

2D NR

Smart Light

Yes

Electronic Defog

Yes

Digital Zoom

16X

Mirror

Off/On

Privacy Masking

Off/On (4 area, rectangle)

Certification

Certifications

CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

Built-in mic(-A)

Port

Video Port

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12V ±30% DC

Power Consumption

Max 5W (12V DC, white light on)

Environment

Operating Temperature

-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Storage Temperature

-40°C to +60°C (-40°F to 140°F);

<95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal front cover + plastic main body + metal bracket

Dimensions

198.4mm×80.2mm×76.2mm (7.81″×3.16″×3.00″)

Net Weight

0.3Kg(0.66lb)

Gross Weight

0.45Kg(0.99lb)

Read More

40m LED distance Full-color starlight Audio HD Camera
