৳ 25,500.00

· 8/16/32-channel IP video access
· Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
· Max 320 Mbps incoming bandwidth
· Up to 24MP resolution for live view and playback
· 1-channel fisheye DE warping (AI by NVR)
· AI by Camera: Perimeter protection; face detection and recognition;
SMD Plus; video metadata; ANPR; people counting; stereo analysis;
crowd distribution; heat map

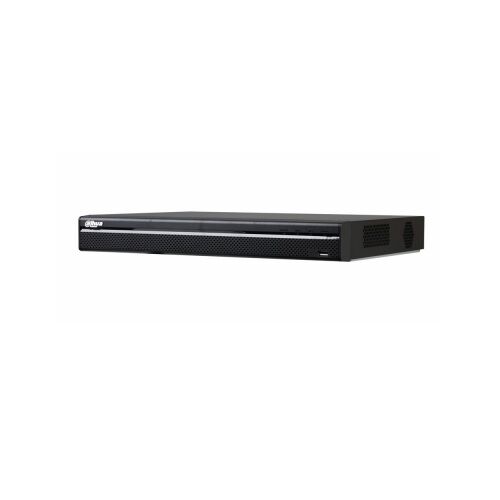

Dahua-NVR5208/5216-4KS2 System Overview

Dahua-NVR5208/5216-4KS2 8/16 Channel 1U 2HDDs 4K & H.265 Pro Network Video Recorder. The NVR is compatible with numerous third-party devices, making it the perfect solution for surveillance systems that work independently of video management systems (VMS). It features an open architecture that supports multi-user access and is compatible with ONVIF 2.4 protocol, enabling interoperability with 4K cameras.

Dahua-NVR5208/5216-4KS2 Specification

Main ProcessorIndustrial embedded microprocessor
Operating SystemEmbedded Linux
Operation InterfaceWeb; local GUI
Perimeter Protection by Camera
Performance8/16 channels
AI SearchSearch for pictures by channel, time, and event type
Face Recognition by Camera
Performance8/14 channels
Face Attributes6 attributes: Gender; age; glasses; expression; mouth mask; beard
AI SearchSearch for pictures by channel, time, and face attributes
SMD Plus by Camera
Performance8/16 channels
AI SearchSearch by target classification (human, vehicle)
Video Metadata by Camera
Performance8/16 channels
Human BodyTop; top color; bottom; bottom color; hat; bag; gender; age; umbrella
VehiclePlate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region
Non-motor VehicleType; color; the number of passengers; helmet
AI SearchSupports searching for target video by metadata
ANPR by Camera
Performance4 channels
Stereo Analysis by Camera
Performance8/16 channels
AI SearchSearch by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection)
Access Channel8/16
Network Bandwidth320 Mbps for access, 320 Mbps for storage, and 320 Mbps for forwarding
Resolution12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more
Decoding Capability16-channel@1080P (30 fps)
Video OutputHDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720
Multi-screen Display8-channel: 1/4/8/9
16-channel: 1/4/8/9/16
Third-Party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon, and more
VideoSmart H.265+; Smart H.264+; H.265; H.264; MJPEG
AudioPCM; G.711A; G.711U; G.726
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.); P2P
Mobile Phone AccessAndroid; iOS
InteroperabilityONVIF (profile T/S/G); CGI; SDK
BrowserChrome; IE9 or later; Firefox
Record Playback
Multi-channel Playback8-channel: 1/4/9

16-channel: 1/4/9/16

Record ModeManual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)
Storage MethodLocal HDD and network
BackupUSB device
Playback Function1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file); partially enlarge; audio on/off
Disk GroupYes
General AlarmMotion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm
Anomaly AlarmCamera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly
Intelligent AlarmPerimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle); ANPR; people counting; stereo analysis; crowd distribution;

heat map

Alarm LinkageRecord; snapshot; IPC external alarm output; buzzer; log; preset; email
External Port
Audio Input1 channel, RCA connector
Audio Output1 channel, RCA connector, which supports voice intercom output
HDD2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Alarm Input4 channels
Alarm Output2 channels
RS-2321 channel, used to debug and pass-through serial data
RS-4851 channel, is used to control PTZ, and it supports multiple protocols
USB1 front USB 2.0 port, 1 rear USB 3.0 port
Network1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port
General Parameter
Power Supply12V/4A DC
Power Consumption< 9.5W (without HDD)
Net Weight1.6 kg (3.5 lb) (without HDD)
Gross Weight3.2 kg (7.1 lb) (without HDD)
Product Dimensions375.0 mm × 282.4 mm × 53.0 mm (14.8″ × 11.1″ × 2.1″)
Package Dimensions429 mm × 137 mm × 360 mm (16.9″ × 14.2″ × 5.4″)
Operating Temperature–10°C to +55°C (+14°F to +131°F)
Storage Temperature0°C to +40°C (+32°F to +104°F)
Operating Humidity10%–93% (RH)
Storage Humidity30%–85% (RH)
Operating Altitude3,000 m (9,843 ft)
CertificationsCE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1

View More Information or Download Datasheet
