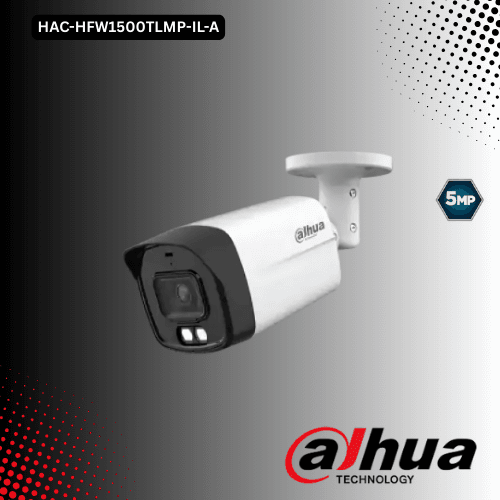

Dahua HAC-HFW1500TLMP-IL-A
৳ 3,150.00
Key Features
- Model: HAC-HFW1500TLMP-IL-A
- Max 25 fps@5MP (16:9 video output)
- IR Distance: 40 m illumination distance
- Built-in Microphone, 3.6 mm fixed lens
- IP67 Waterproof, Smart Dual Light
Call For Wholesale Best Price 01611605422 (WhatsApp)
Specification
| General | ||
| Casing | Metal front cover + plastic rear barrel + metal bracket | |
| Dimensions | 198.4 mm × 80.2 mm × 76.2 mm (7.81″ × 3.16″ × 3″) | |
| Weight | 0.3 kg (0.66 lb) | |
| Pan/Tilt/Rotation | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
|
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) | |
| Power Supply | 12 VDC ± 30% | |
| Power Consumption | Max 4.5 W (12 VDC, WLED on) | |
| Camera | ||
| Image Sensor | 5 MP CMOS | |
| Effective Pixels | 2880 (H) × 1620 (V) | |
| Scanning System | Progressive | |
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
|
| Minimum Illumination | 0.05 lux@F1.6 (Color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
|
| S/N Ratio | More than 65dB | |
| IR Distance | IR: 40 m (131.23 ft) Warm Light: 40 m (131.23 ft) |
|
| IR On/Off Control | Auto / Manual | |
| IR LEDs | 2 (Warm light);2 (IR light) | |
| Lens | ||
| Lens Type | Fixed-focal | |
| Mount Type | M12 | |
| Focal Length | 3.6 mm | |
| Max Aperture | F1.6 | |
| Angle of View | 2.8 mm: H: 106°; V: 56°; D: 125° 3.6 mm: H: 92°; V: 48°; D: 109° |
|
| Close Focus Distance | 3.6 mm: 1.3 m (4.27 ft) | |
| Video | ||
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
|
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC Mode | BLC; HLC; DWDR | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 2D NR | |
| Interface | ||
| Audio Interface | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | |
| Video Interface | One channel built-in mic | |
| Special Features | ||
| Features | Smart Dual Light. 40 m illumination distance. Super Adapt. Built-in MIC. IP67 |
|
| Warranty | ||
| Warranty | 1 Year | |
