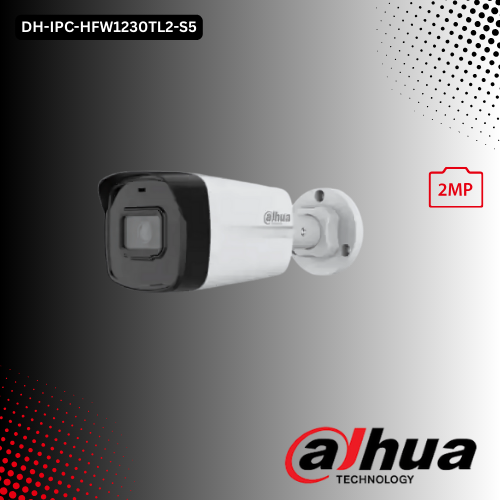

Dahua DH-IPC-HFW1230TL2-S5
৳ 2,550.00
Key Features
- Model: DH-IPC-HFW1230TL2-S5
- Image Sensor: 1/2.8″ CMOS
- Max. Output Resolution: 2MP (1920 × 1080) @25/30 fps.
- IR Distance: 30 m (49.21 ft), Built-In Warm Light
- Features: Motion detection, video tampering, IP67, Smart Codec, Abnormality Detection
Call For Wholesale Best Price 01611605422 (WhatsApp)
Specification
| Camera Feature | ||
| Image Sensor | 1/2.8″ CMOS | |
| Effective Pixels | 2MP | |
| IR Distance | 30m | |
| Others | Scanning System: Progressive Electronic Shutter Speed: Auto/Manual, 1/3~1/100000s Minimum Illumination: 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
|
| Lens | ||
| Type | Fixed | |
| Focal Length | Focal Length: 3.6 mm | |
| Aperture | 3.6 mm: F2.0 | |
| Angle of View | 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° | |
| Others | Mount Type: M12 Close Focus Distance: 3.6 mm: 0.8 m (2.6 ft) Compression: H.265; H.264; H.264B; 264H; MJPEG (Only supported by the sub stream) Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Frame Rate: Main stream: 2560 × 1440@ (1–25/30 fps) sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) Noise Reduction: 3D DNR Day/Night: Auto (ICR)/Color/B/W BLC Mode: Yes White Balance: Auto; natural; street lamp; outdoor; manual; regional custom |
|
| Physical Specification | ||
| Dimension | 198.9 mm × 80.2 mm × 76.2 mm (7.83″ × 3.16″ × 3.00″)(L × W × H) | |
| Weight | 0.25 kg (0.55 lb) | |
| Power | Power Supply: 12V DC/PoE (802.3af) Power Consumption: Basic power consumption: 1.3 W (12 VDC); 2.1 W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.9 W (12 VDC); 3.9 W (PoE) |
|
| Others | Ingress Protection: IP67 | |
| Warranty | 1 Year | |
