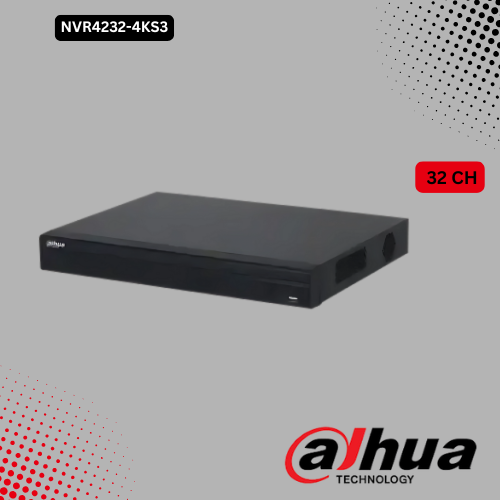

Dahua NVR4232-4KS3
৳ 20,000.00
Key Features
- Model: NVR4232-4KS3
- Supports IP cameras with a resolution up to 12 MP
- Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth
- Supports EPTZ, and one-click arming and disarming
- AI by Recorder supports 2-channel SMD Plus
Call For Wholesale Best Price 01611605422 (WhatsApp)
Specification
| System | ||
| Main Processor | Industrial-grade processor | |
| Operating System | Embedded LINUX | |
| Audio and Video | ||
| IP Camera Input | 32 Channel | |
| Two-Way Talk | 1 Channel Input, 1 Channel Output, RCA | |
| Display | ||
| Interface | 1 HDMI, 1 VGA | |
| Resolution | 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| Decoding Capacity | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps | |
| Multi-Screen Display | AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16 | |
| Recording | ||
| Compression | Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. | |
| Resolution | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF | |
| Bit Rate | Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth | |
| Record Mode | General, motion detection; intelligent; alarm | |
| Video Detection And Alarm | ||
| Trigger Event | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
|
| Video Detection | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm | |
| Alarm Input | 4 channels | |
| Relay Output | 2 channels (1-channel 12 V 1 A output） | |
| Playback And Backup | ||
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Third Party Support | ||
| Third Party Support | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha | |
| Network | ||
| Interface | 1 (10/100/1000 Mbps Ethernet port, RJ-45) | |
| PoE | N/A | |
| Network Function | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) | |
| Smart Phone | iOS; Android | |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK | |
| Storage | ||
| Internal HDD | 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. | |
| Auxiliary Interface | ||
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) | |
| Power | ||
| Power Supply | 12 VDC, 4 A | |
| Power Consumption | Total output of NVR is <10 W(without HDD) | |
| Component Environment | ||
| Operational Conditions | –10 °C to +55 °C (14 °F to +131 °F) | |
| Storage Conditions | –20 °C to +60 °C (–4 °F to +140 °F) | |
| Construction | ||
| Dimensions | 375.0 mm × 282.9 mm × 53.0 mm (14.76″ ×11.14″ × 2.09″) (W × D × H) | |
| Net Weight | 1.49 kg (3.28 lb) | |
| Gross Weight | 2.77 kg (6.11 lb) | |
| Warranty | ||
| Manufacturing Warranty | 01-year warranty | |
