Dahua SD6C220T-HN Features

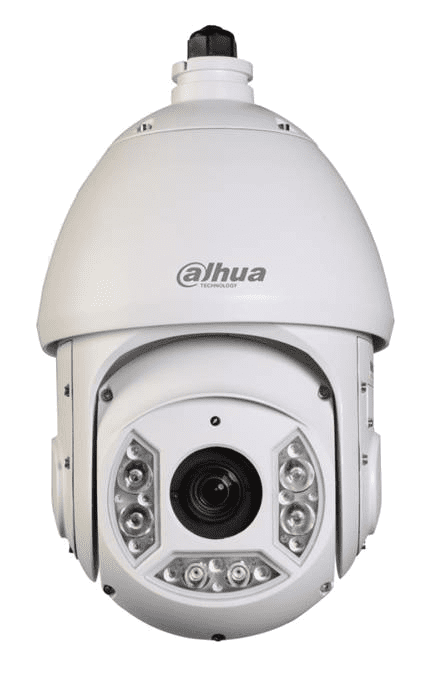

Dahua SD6C220T-HN 2 Megapixel Full HD 20x Network IR PTZ Dome Camera
>20x optical zoom
>Support Triple-streams encoding
>Max. 25/30fps @1080P(1920×1080) & 50/60fps @720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 100m
>Support Triple-streams encoding
>Max. 25/30fps @1080P(1920×1080) & 50/60fps @720P resolution
>DWDR, Day/Night(ICR), Ultra DNR, Auto iris, Auto focus
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 2/1 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 100m
Dahua SD6C220T-HN Specifications
Model | DH-SD6C220T-HN | |
Camera | ||
Image Sensor | 1/2.8” Exmor CMOS | |
Effective Pixels | 1920(H) x 1080(V) | |
Scanning System | Progressive | |
Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
Min. Illumination | Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4 |
|
S/N Ratio | More than 50dB | |
Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
Camera Features | ||
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / DWDR (Digital WDR) | |
White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | Ultra DNR (2D/3D) | |
Privacy Masking | Up to 24 areas | |
Digital Zoom | 16x | |
Lens | ||
Focal Length | 4.7mm ~ 94.0mm (20x Optical zoom) |
|
Max Aperture | F1.4 ~ F2.6 | |
Focus Control | Auto / Manual | |
FOV-H | H: 56.1° ~ 3.1° | |
Close Focus Distance | 100mm~ 1000mm | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180° | |
Manual Control Speed | Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s | |
Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
Preset | 300 | |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
Speed Setup | Human-oriented focal length/ speed adaptation | |
Power up Action | Auto restore to previous PTZ and lens status after power failure | |
Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
IR Distance | 100m (2 near IR LED+ 4 far IR LED) | |
Video | ||
Compression | H.264H/H.264B/H.264/ MJPEG | |
Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576/ 704×480) /CIF (352×288/352×240) |
|
Frame Rate | Main Stream | 1080P/ D1 (1 ~ 25/30fps), 720P(1~50/60fps) |
Sub Stream 1 | D1/CIF(1 ~ 25/30fps) | |
Sub Stream 2 | 720P/D1/ CIF (1 ~ 25/30fps) | |
Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
Audio | ||
Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
Interface | 1/1 channel In/Out | |
Intelligent Function | ||
IVS (optional) | Tripwire, Intrusion, Abandoned Object Detection, Missing Object Detection, | |
Face Detection | Support | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
Compatibility | ONVIF PSIA CGI | |
Max. User Access | 20 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Auxiliary Interface | ||
Memory Slot | Micro SD, Max 128GB | |
RS485 | 1 | |
Alarm | 2/1 channel In/Out | |
General | ||
Power Supply | AC 24V/3A | |
Power Consumption | 10.5W, 26W (IR on, Heater on) | |
Working Environment | -40ºC ~ 60ºC / Less than 90% RH | |
Ingress Protection | IP66 | |
Dimensions | Φ204.7(mm) x 359.9(mm) | |
Weight | 5kg |
